Warehouse Double Guide Rail Cargo Lift 2000kg 9m Vertical Freight Elevator

Warehouse Double Guide Rail Cargo Lift 2000kg 9m Vertical Freight Elevator

Standard Features:

• Commercial and industrial applications
• 4 post design
• Standard 2000kgs loading capacity
• Upper and lower landing limits
• Upper safety limit
• 24V DC safety control circuit
• Outwards opening railings with interlock*1M height
• Digital control panel on each landing stop
• Manual lower down valve when power off
• Explosive-proof valve
• 4-5m/min. Lifting speed, down speed adjustable
• 200-250mm minimum pit
• 5 year warranty on main structural components(indoor use)
• 1 year warranty electrical components

Description:

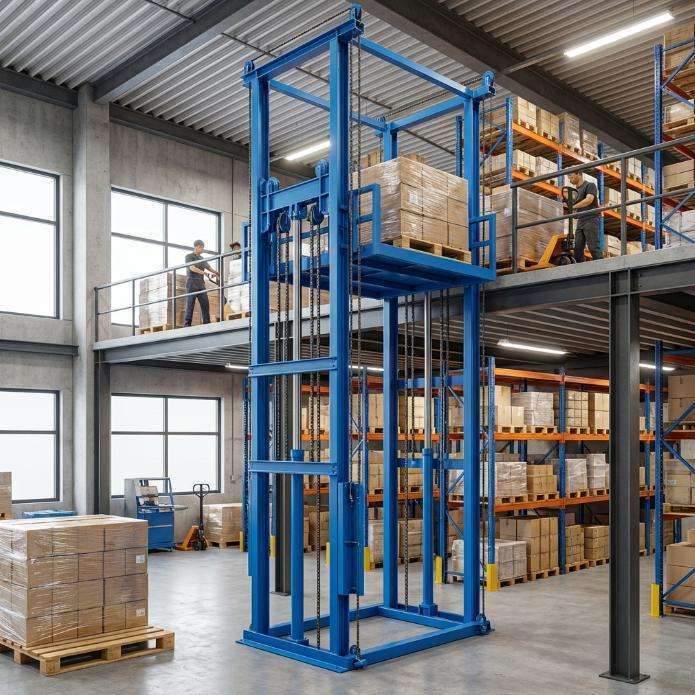

The guide rail cargo lift is a hydraulic lifting mechanical equipment used for lifting goods. It uses hydraulic cylinders as the main power and is driven by heavy chains and wire ropes to ensure the absolute safety of the machine. There is no need for pits and machine rooms, and it is especially suitable for basements, warehouse transformations, new shelves, etc. It has convenient installation and maintenance, beautiful appearance, safety, and convenient operation.

Specifications:

Application:

Without restriction of space, they are widely used in lifting operations over large areas, such narrow space as warehouses, factories, highways and stairwell place where we could not dig pits. It is used to lift up and down large cargo to different levels, normally in the assembly line and other cargo transferring.

FAQ:

1. Can you customize product ?

Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.

2. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

3. What is your delivery & after-sales service?

The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.

4.How long will it take you to ship the goods?

It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.

5.What kinds of payment you accept?

We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
