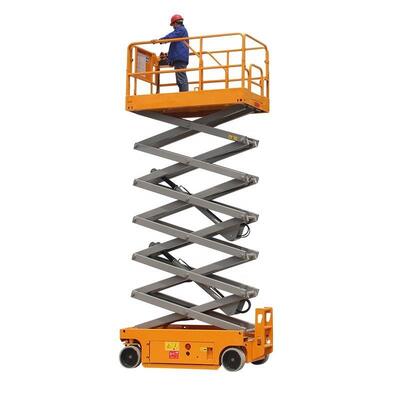

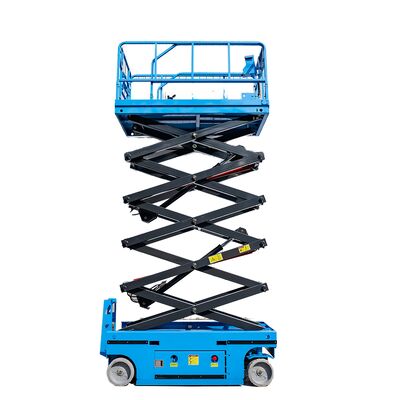

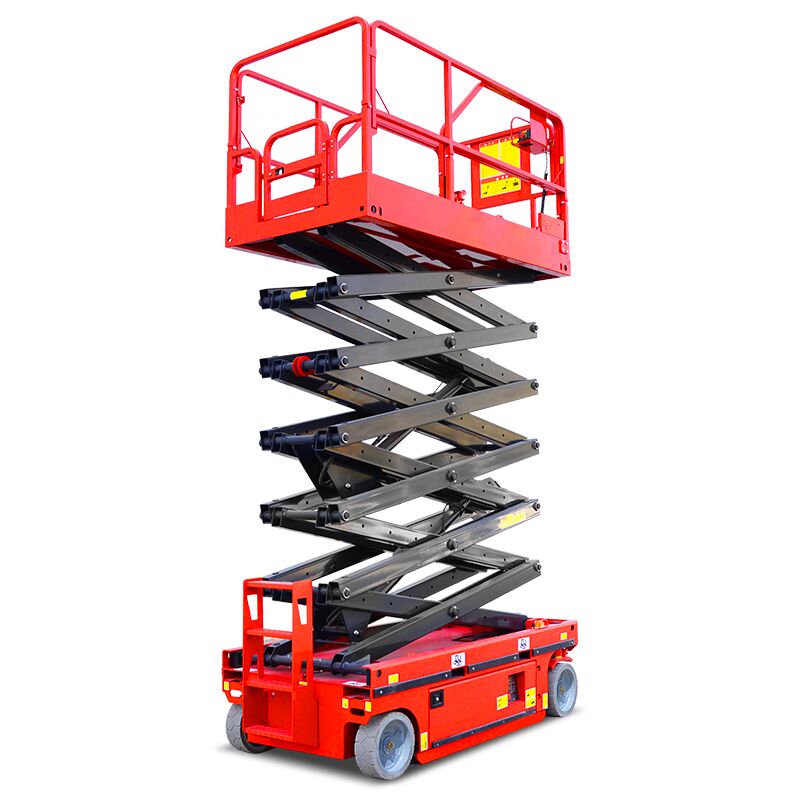

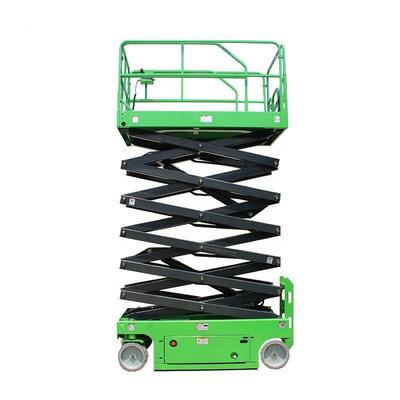

Self Propelled Scissor Lift 6m 8m 10m 450kg Construction Aerial Work Platform

Brand Name:	DZ
Model Number:	DZZ12
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Product Name:

Self Propelled Scissor Lift

Type:

Aerial Work Platform

Platform Size:

2.27m X 1.12m

Load Capacity:

320KG

Lifting Height:

Working Height:

Lifting Motor:

24V/4.5KW

Lift Drive / Actuation:

Electric Motor

Material:

High Strength Steel

Keywords:

Aerail Work Platform

Product Description

Self Propelled Scissor Lift 6m 8m 10m 450kg Construction Aerial Work Platform

Attribute	Value
Product Name	Self Propelled Scissor Lift
Type	Aerial Work Platform
Platform Size	2.27m x 1.12m
Load Capacity	320KG
Lifting Height	14m
Working Height	12m
Lifting Motor	24V/4.5KW
Lift Drive / Actuation	Electric Motor
Travel Speed (Stowed)	3.5Km/h
Travel Speed (Raised)	0.8Km/h

Standard Features:

Battery power: long battery life and maintenance free
Faster & Intelligent charger
Non-mark solid tires and smooth operation, friendly to sensitive floors
Environmental friendly with 0 emission and 0 leak
Extension platform, expand working range
Cost effective compared with boom lifts
Maintenance supporting bar guarantees safety during maintenance
Emergency stop
Manual lower down device
Dual control on platform or ground
25% grade ability
Quick fold railings
Overload sensing
Slope protection

Description:

Our self moving mobile scissor lift is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. With the battery, it can realize its automatic operation, for one person to operate at the platform for going backward, forward, turning, even at its maximum height. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.

Specifications:

Model	DZZ06SP	DZZ08NP	DZZ06	DZZ08	DZZ10	DZZ12	DZZ14
Rated Load Capacity	230Kg	230Kg	450Kg	450Kg	320Kg	320Kg	230Kg
Extension Platform Capacity	113Kg	113Kg	113Kg	113Kg	113Kg	113Kg	113Kg
Maximum Workers Number	2	2	2	2	2	2	2
Working Height	7.8m	10m	8m	10m	12m	13.8m	15.7m
Platform Height	5.8m	8m	6m	8m	10m	11.8m	13.7m
Overall Length	1860mm	2480mm	2480mm	2480mm	2480mm	2480mm	2850mm
Overall Width	768mm	820mm	1190mm	1190mm	1190mm	1190mm	1250mm
Overall Height (Rails up)	2180mm	2320mm	2200mm	2320mm	2450mm	2570mm	2635mm
Overall Height (Rails down)	1840mm	1990mm	1660mm	1780mm	1910mm	2030mm	2100mm
Platform Size (LxW)	1670x740mm	2270x810mm	2270x1120mm	2270x1120mm	2270x1120mm	2270x1120mm	2640x1120mm
Platform Extension Size	900mm	900mm	900mm	900mm	900mm	900mm	900mm
Ground Clearance (Stowed)	83mm	100mm	100mm	100mm	100mm	100mm	100mm
Ground Clearance (Raised)	16mm	19mm	19mm	19mm	19mm	19mm	19mm
Wheel Base	1085mm	1895mm	1895mm	1895mm	1895mm	1895mm	2230mm
Turning Radius (Inside)	0m	0m	0m	0m	0m	0m	0m
Turning Radius (Outside)	1.64m	2.2m	2.2m	2.2m	2.2m	2.2m	2.7m
Lifting Motor	24V/3.3KW	24V/3.3KW	24V/3.3KW	24V/3.3KW	24V/3.3KW	24V/4.5KW	24V/4.5KW
Travel Speed (Stowed)	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h
Travel Speed (Raised)	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h
UP/Down Speed	20/20sec	30/25sec	24/34sec	36/35sec	60/40sec	60/50sec	82/60sec
Battery	4x6V/225Ah	4x6V/225Ah	4x6V/225Ah	4x6V/240Ah	4x6V/240Ah	4x12V/300Ah	4x12V/300Ah
Charger	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A
Gradeability	25%	25%	25%	25%	25%	25%	25%
Max.Working Slope	2°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Tyre	φ305x100mm	φ381x127mm	φ381x127mm	φ381x127mm	φ381x127mm	φ381x127mm	φ381x127mm
Overall Weight	1460Kg	2260Kg	2170Kg	2360Kg	2640Kg	2980Kg	3600Kg

Applications:

Self-propelled Scissor Lifts are primarily designed for elevating personnel with their tools to required working heights, facilitating maintenance, assembly, and similar operations.

Advantages:

Compact structure design enhances flexibility and agility for aerial tasks
Comprehensive safety devices ensure worker protection and operational efficiency
Extended platform provides expanded working range
High-quality batteries deliver extended working life and endurance

Frequently Asked Questions

1. Can you customize products?

Yes, we offer customization services. Our experienced engineering team can design products according to your specific requirements.

2. How do you ensure product quality?

All products undergo thorough testing before delivery. We welcome customers to inspect products at our factory.

3. What is your delivery & after-sales service?

Delivery schedules vary by order quantity. We provide 24/7 technical support and promptly address all product-related inquiries.

4. How long will it take you to ship the goods?

Shipping times depend on product specifications, but we guarantee prompt dispatch, typically within 5-10 days.

5. What payment methods do you accept?

We typically accept T/T and L/C payments. Alternative payment terms can be discussed upon request.
