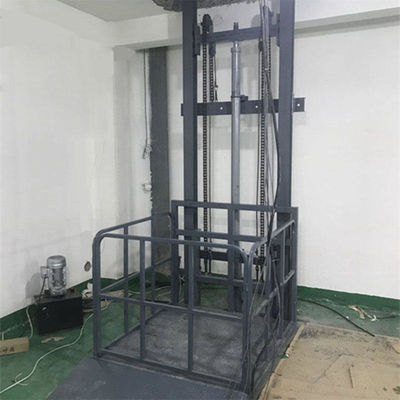

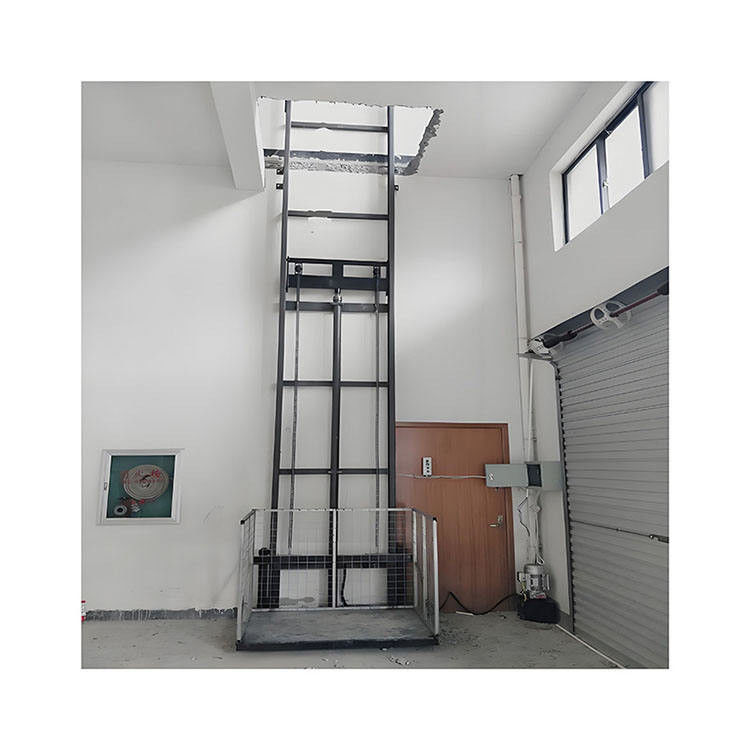

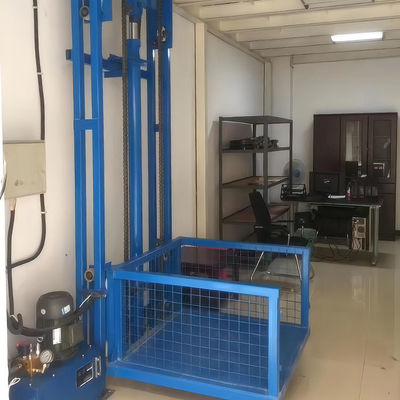

Wall Mounted Electric Cargo Elevator Small Goods Lift Table 3m - 10m For Warehouse

Brand Name:	DZ
Model Number:	DZH0.5-5
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Product Name:

Easy Lift Cargo Lift

Load Capacity:

500KG

Platform Size:

1m X 1m

Lift Drive:

Hydraulic

Lifting Height:

Lifting Speed:

4-5m/min

Motor Power:

2.2KW

Power Supply:

220/240/380/415V

Material:

Metal, Steel, Aluminum Alloy

Application:

Buildings, Homes, Warehouses, Etc

Highlight:

Small Goods Lift Table

10m Electric Cargo Elevator

3m Electric Cargo Elevator

Product Description

Wall Mounted Electric Cargo Elevator Small Goods Lift Table 3m - 10m For Warehouse

Features:

Easy to move, install.
Remote control, easy to operate.
500kg-1000kg loading capacity.
Strong electric motor to ensure the loading capacity.
Lift up and down stably and stop anywhere.
Falling protector and limit switch to ensure the safety.
Improve work efficiency and save working time.

Description:

Easy lift cargo lift is a kind of goods lifting equipment with stability, large carrying capacity and wide application range. It is mainly used for the transportation of goods between the height difference of the production line. The lifting height of Single Guide Rail Cargo Lift ranges from 3 meters to 10 meters, special specifications of cargo elevators can be customized according to user requirements.

Specifications:

MODEL	CAPACITY	*PLATFORM SIZE (WD)**	LIFTING HEIGHT	*PIT (WLD)*	MOTOR POWER	POWER SUPPLY (V)
DZH0.5-3	500KG	1000X1000MM	3000MM	13001160200MM	2.2KW	220/240/380/415
DZH0.5-5	500KG	1000X1000MM	6000MM	13001160200MM	2.2KW	220/240/380/415
DZH0.5-7	500KG	1000X1000MM	8000MM	13001160200MM	3KW	220/240/380/415
DZH0.5-9	500KG	1000X1000MM	10000MM	13001160200MM	3KW	220/240/380/415
DZH1-3	1000KG	1200X1500MM	3000MM	13501660300MM	3KW	220/240/380/415
DZH1-4	1000KG	1200X1500MM	4000MM	13501660300MM	3KW	220/240/380/415
DZH1-5	1000KG	1200X1500MM	5000MM	13501660300MM	3KW	220/240/380/415
DZH1-6	1000KG	1200X1500MM	6000MM	13501660300MM	3KW	220/240/380/415
DZH1-7	1000KG	1200X1500MM	7000MM	13501660300MM	3KW	220/240/380/415
DZH1-8	1000KG	1200X1500MM	8000MM	13501660300MM	3KW	220/240/380/415
DZH1-9	1000KG	1200X1500MM	9000MM	13501660300MM	3KW	220/240/380/415
DZH1-10	1000KG	1200X1500MM	10000MM	13501660300MM	3KW	220/240/380/415

Applications:

Cargo lift is widely used in indoor or outdoor places of the buildings and warehouses to lift goods or pallets between floors.

Wall Mounted Electric Cargo Elevator Small Goods Lift Table 3m - 10m For Warehouse 0

FAQ:

1. Can you customize product ?

Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.

2. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

3. What is your delivery & after-sales service?

The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.

4.How long will it take you to ship the goods?

It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.

5.What kinds of payment you accept?

We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
