Manual Fixed 1000kg 4m Hydraulic Scissor Lift Platform For Indoor Outdoor Use

Brand Name:	DZ
Model Number:	DZS1-4
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Product Name:

Fixed Scissor Lifting Platform

Loading Capacity:

1000KG

Lifting Height:

Lifting Speed:

3-4m/min

Platform Size:

2m X 1.5m

Min Height:

0.63m

Control Voltage:

Input Voltage:

220/240/380/415V

Lift Drive / Actuation:

Hydraulic

Warranty:

1 Year

Highlight:

1000kg Scissor Lift Platform

Manual Fixed Scissor Lift Platform

Indoor Outdoor Scissor Lift Platform

Product Description

Manual Fixed 1000kg 4m Hydraulic Scissor Lift Platform For Indoor Outdoor Use

Standard Features:

Mechanical props for safe and secure maintenance
Press to run control panel*3m with Emergency stop
Manual lower down valve when power off
3-4m/min. Lifting speed, down speed adjustable
5 year warranty on main structural components
1 year warranty electrical components
Aluminum profile safety trip bars
24V DC safety control circuit
Adjustable limit switches
Tested to+25% overload
Safety backup switch
Hose burst valves

Description:

Fixed Scissor Lifting Platform have reflective strips remind safety, support thickened and weighted base to ensure safety, sealed and leak proof hydraulic cylinder, smooth and unobstructed for lifting and lowering, by using the remote control, the lift platform can be controlled to ascend and descend. Not only is it convenient to use,but it also greatly improves the working efficiency.

Specifications:

Model	Capacity	Platform Size	Lifting Height	Motor Power	Min.Height	Power Supply(V)
DZS1-2	1000KG	2000X1500MM	2000MM	3KW	400MM	220/240/380/415
DZS1-2.5	1000KG	2000X1500MM	2500MM	3KW	400MM	220/240/380/415
DZS1-3	1000KG	2000X1500MM	3000MM	3KW	520MM	220/240/380/415
DZS1-3.5	1000KG	2000X1500MM	3500MM	3KW	520MM	220/240/380/415
DZS1-4	1000KG	2000X1500MM	4000MM	3KW	630MM	220/240/380/415
DZS1-4.5	1000KG	2000X1500MM	4500MM	3KW	630MM	220/240/380/415
DZS1-5	1000KG	2000X1500MM	5000MM	3KW	630MM	220/240/380/415
DZS2-2	2000KG	2500X1500MM	2000MM	4KW	520MM	220/240/380/415
DZS2-2.5	2000KG	2500X1500MM	2500MM	4KW	520MM	220/240/380/415
DZS2-3	2000KG	2500X1500MM	3000MM	4KW	520MM	220/240/380/415
DZS2-3.5	2000KG	2500X1500MM	3500MM	4KW	680MM	220/240/380/415
DZS2-4	2000KG	2500X1500MM	4000MM	4KW	680MM	220/240/380/415
DZS2-4.5	2000KG	2500X1500MM	4500MM	4KW	680MM	220/240/380/415
DZS2-5	2000KG	2500X1500MM	5000MM	4KW	830MM	220/240/380/415
DZS3-2	3000KG	3000X2000MM	2000MM	4KW	640MM	220/240/380/415
DZS3-2.5	3000KG	3000X2000MM	2500MM	4KW	640MM	220/240/380/415
DZS3-3	3000KG	3000X2000MM	3000MM	4KW	640MM	220/240/380/415
DZS3-3.5	3000KG	3000X2000MM	3500MM	4KW	640MM	220/240/380/415
DZS3-4	3000KG	3000X2000MM	4000MM	4KW	840MM	220/240/380/415
DZS3-4.5	3000KG	3000X2000MM	4500MM	4KW	840MM	220/240/380/415
DZS3-5	3000KG	3000X2000MM	5000MM	4KW	840MM	220/240/380/415
DZS4-2	4000KG	4000X2000MM	2000MM	5.5KW	480MM	220/240/380/415
DZS4-2.5	4000KG	4000X2000MM	2500MM	5.5KW	480MM	220/240/380/415
DZS4-3	4000KG	4000X2000MM	3000MM	5.5KW	680MM	220/240/380/415
DZS4-3.5	4000KG	4000X2000MM	3500MM	5.5KW	680MM	220/240/380/415
DZS4-4	4000KG	4000X2000MM	4000MM	5.5KW	680MM	220/240/380/415

Application:

Scissor Lift tables are mainly used for warehouse goods lifting between different levels of floors. Both in door and outdoor are available.

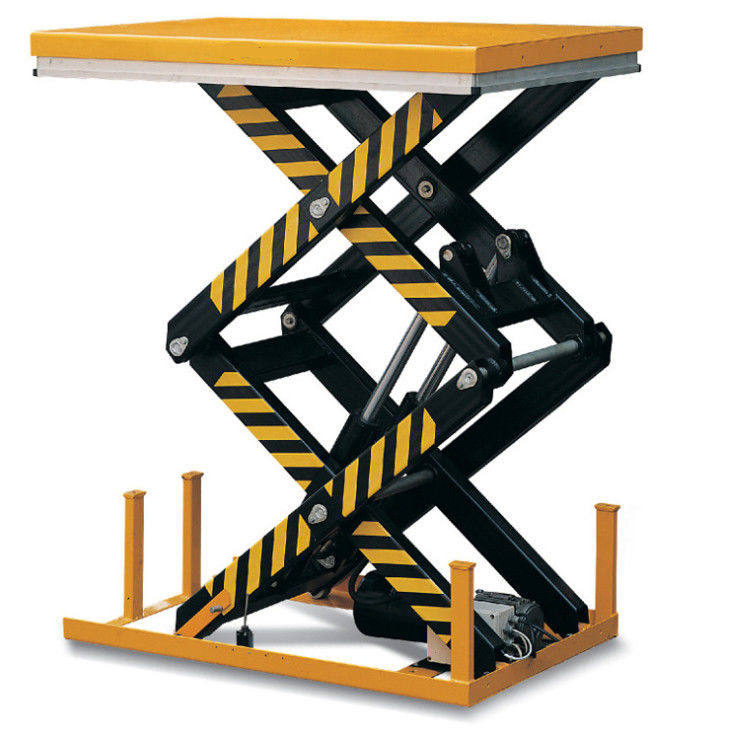

Manual Fixed 1000kg 4m Hydraulic Scissor Lift Platform For Indoor Outdoor Use 0

FAQ:

1. Can you customize product ?

Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.

2. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

3. What is your delivery & after-sales service?

The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.

4.How long will it take you to ship the goods?

It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.

5.What kinds of payment you accept?

We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
