1000kg Small Cargo Elevator Orange Wall Mounted Cargo Lift For Warehouse

Brand Name:	DZ
Model Number:	DZH1-3
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Product Name:

Two Post Cargo Lift

Load Capacity:

1000KG

Platform Size:

1.2m X 1.5m

Lifting Height:

Lifting Speed:

4-5m/min

Motor Power:

Power Supply:

220/240/380/415V

Type:

Hydraulic Lift

Feature:

Easy Install Safety Convenience

Application:

Warehouse,Mall,Construction Site,etc

Highlight:

1000kg small cargo elevator

small cargo elevator orange

orange wall mounted cargo lift

Product Description

1000kg Warehouse Small Cargo Lift Elevator Wall Mount Freight Elevator

Standard features:

Commercial and industrial applications
2 post design
Standard Max. 500kg and 1000kg loading capacity
Upper and lower landing limits
Upper safety limit
24V DC safety control circuit
Outwards opening railings with interlock*1M height
Digital control panel on each landing stop
Manual lower down valve when power off
Explosive-proof valve
4-5m/min. Lifting speed, down speed adjustable
200mm minimum pit
5 year warranty on main structural components (indoor use)
1 year warranty electrical components

Description:

Easy lift cargo lift is an efficient, convenient and easy-installed freight lift platform driven by electric motor. Hydraulicsingle guide rail lifting platform covers a small area, simple installation, easy to operate, widely used in life. We can customize different products according to the specific needs of customers, suitable for warehouse, building, home use and so on.

Specifications:

MODEL	CAPACITY	*PLATFORM SIZE (WD)**	LIFTING HEIGHT	*PIT (WLD)*	MOTOR POWER	POWER SUPPLY (V)
DZH0.5-3	500KG	1000X1000MM	3000MM	13001160200MM	2.2KW	220/240/380/415
DZH0.5-5	500KG	1000X1000MM	6000MM	13001160200MM	2.2KW	220/240/380/415
DZH0.5-7	500KG	1000X1000MM	8000MM	13001160200MM	3KW	220/240/380/415
DZH0.5-9	500KG	1000X1000MM	10000MM	13001160200MM	3KW	220/240/380/415
DZH1-3	1000KG	1200X1500MM	3000MM	13501660300MM	3KW	220/240/380/415
DZH1-4	1000KG	1200X1500MM	4000MM	13501660300MM	3KW	220/240/380/415
DZH1-5	1000KG	1200X1500MM	5000MM	13501660300MM	3KW	220/240/380/415
DZH1-6	1000KG	1200X1500MM	6000MM	13501660300MM	3KW	220/240/380/415
DZH1-7	1000KG	1200X1500MM	7000MM	13501660300MM	3KW	220/240/380/415
DZH1-8	1000KG	1200X1500MM	8000MM	13501660300MM	3KW	220/240/380/415
DZH1-9	1000KG	1200X1500MM	9000MM	13501660300MM	3KW	220/240/380/415
DZH1-10	1000KG	1200X1500MM	10000MM	13501660300MM	3KW	220/240/380/415

Applications:

Cargo lift is widely used in indoor or outdoor places of the buildings and warehouses to lift goods or pallets between floors.

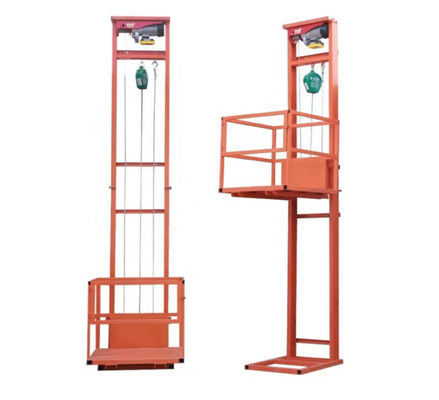

1000kg Small Cargo Elevator Orange Wall Mounted Cargo Lift For Warehouse 0

FAQ:

1. Can you customize product ?

Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.

2. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

3. What is your delivery & after-sales service?

The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.

4.How long will it take you to ship the goods?

It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.

5.What kinds of payment you accept?

We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
