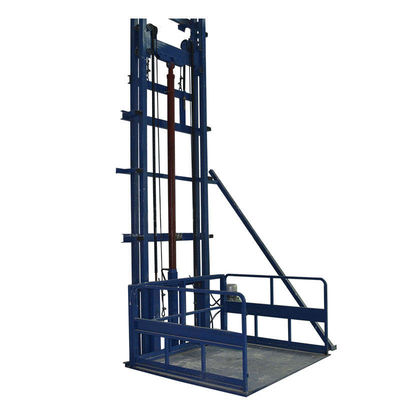

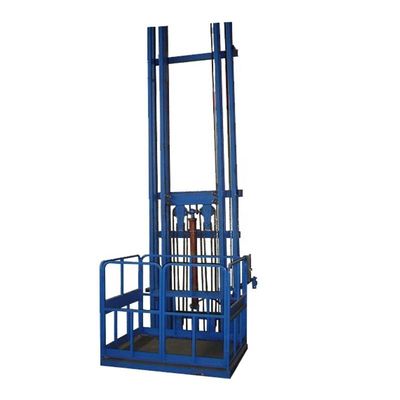

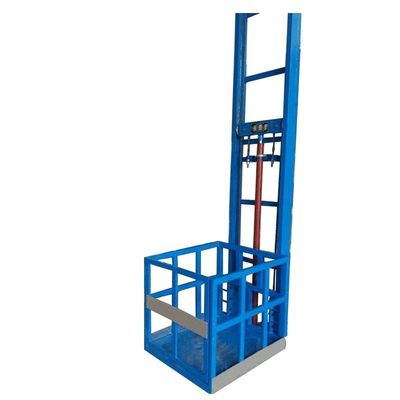

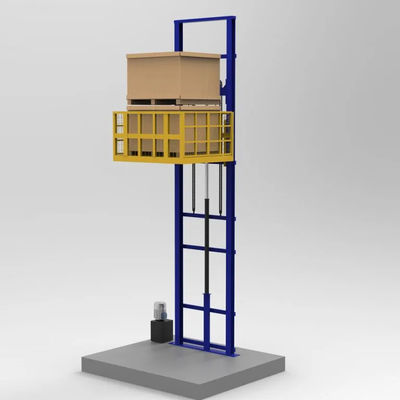

4m 1000kg Cargo Elevator Lift Hyd Industrial Cargo Lift For Transporting Goods

All Category

Chain Hoist

Mrs. Helen

helen@liftsindustrial.com

+8618721181299

helensh299

Contact Now

4m 1000kg Cargo Elevator Lift Hyd Industrial Cargo Lift For Transporting Goods

Brand Name:	DZ
Model Number:	DZH1-4
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Product Name:

Two Post Cargo Lift

Load Capacity:

1000KG

Platform Size:

1.2m X 1.5m

Lifting Height:

Usage:

Transporting Goods

Lifting Speed:

4-5m/min

Motor Power:

Power Supply:

220/240/380/415V

Warranty:

1 Year

Highlight:

1000kg cargo elevator lift

cargo elevator lift hyd

hyd industrial cargo lift

Product Description

4m 1000kg Load Hydraulic Cargo Lift Single Guide Rail Goods Lift

Standard features:

Commercial and industrial applications
2 post design
Standard Max. 500kg and 1000kg loading capacity
Upper and lower landing limits
Upper safety limit
24V DC safety control circuit
Outwards opening railings with interlock*1M height
Digital control panel on each landing stop
Manual lower down valve when power off
Explosive-proof valve
4-5m/min. Lifting speed, down speed adjustable
200mm minimum pit
5 year warranty on main structural components (indoor use)
1 year warranty electrical components

Description:

Cargo lift belongs to materials handle equipment, which is equipped with electrical control system. It is driven by hydraulic pump station. Such kind of cargo lift is suitable for both light goods and heavy materials.This lift transports freight capacity up to 1000kgs. Available table size max. to 1.4*1.8M and capable of up 4 stops and up to 12 Meters. The unit can be ordered in choice of a standard sized platform or custom sized. The loading and unloading could be 3 sides, flexible adjustable per customer sites.

Specifications:

MODEL	CAPACITY	*PLATFORM SIZE (WD)**	LIFTING HEIGHT	*PIT (WLD)*	MOTOR POWER	POWER SUPPLY (V)
DZH0.5-3	500KG	1000X1000MM	3000MM	13001160200MM	2.2KW	220/240/380/415
DZH0.5-5	500KG	1000X1000MM	6000MM	13001160200MM	2.2KW	220/240/380/415
DZH0.5-7	500KG	1000X1000MM	8000MM	13001160200MM	3KW	220/240/380/415
DZH0.5-9	500KG	1000X1000MM	10000MM	13001160200MM	3KW	220/240/380/415
DZH1-3	1000KG	1200X1500MM	3000MM	13501660300MM	3KW	220/240/380/415
DZH1-4	1000KG	1200X1500MM	4000MM	13501660300MM	3KW	220/240/380/415
DZH1-5	1000KG	1200X1500MM	5000MM	13501660300MM	3KW	220/240/380/415
DZH1-6	1000KG	1200X1500MM	6000MM	13501660300MM	3KW	220/240/380/415
DZH1-7	1000KG	1200X1500MM	7000MM	13501660300MM	3KW	220/240/380/415
DZH1-8	1000KG	1200X1500MM	8000MM	13501660300MM	3KW	220/240/380/415
DZH1-9	1000KG	1200X1500MM	9000MM	13501660300MM	3KW	220/240/380/415
DZH1-10	1000KG	1200X1500MM	10000MM	13501660300MM	3KW	220/240/380/415

Applications:

Cargo lift is widely used in indoor or outdoor places of the buildings and warehouses to lift goods or pallets between floors.

4m 1000kg Cargo Elevator Lift Hyd Industrial Cargo Lift For Transporting Goods 0

FAQ:

1. Can you customize product ?

Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.

2. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

3. What is your delivery & after-sales service?

The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.

4.How long will it take you to ship the goods?

It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.

5.What kinds of payment you accept?

We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
