Indoor Outdoor Self Propelled Elevating Work Platforms Mobile Hydraulic Platform 12m

Brand Name:	DZ
Model Number:	DZZ08NP
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Product Name:

Self Propelled Scissor Lift

Load Capacity:

230KG

Lifting Height:

Platform Size:

2.27m X 0.81m

Travel Speed (Stowed):

3.5Km/h

Travel Speed (Raised):

0.8Km/h

Lifting Motor:

24V/3.3KW

UP/Down Speed:

30/25sec

Battery:

4x6V/225Ah

Charger:

24V/25A

Application:

Indoor And Outdoor

Highlight:

outdoor self propelled elevating work platforms

indoor mobile hydraulic platform 12m

indoor self propelled elevating work platforms

Product Description

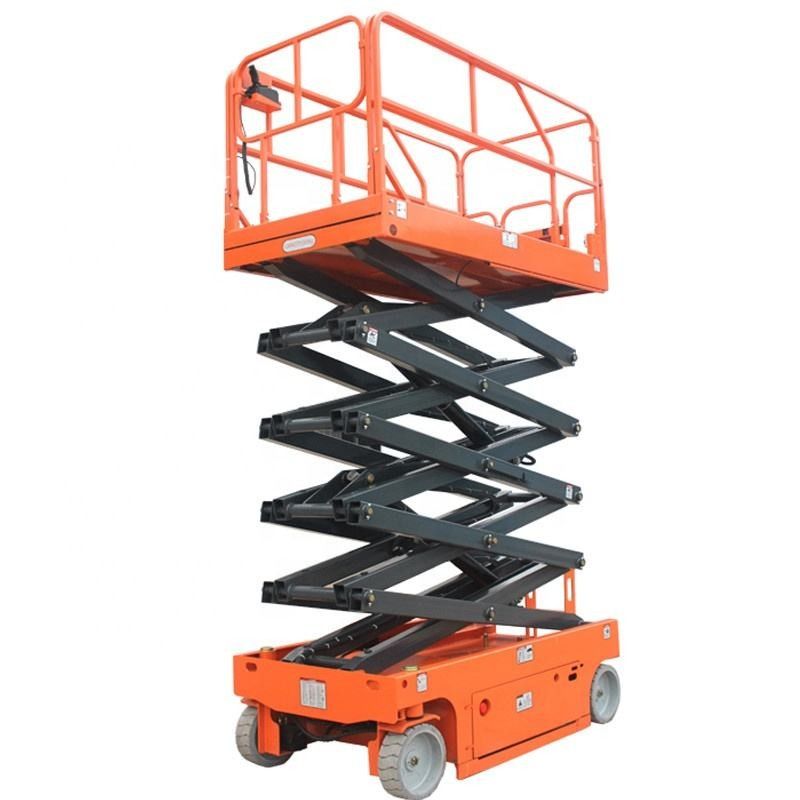

10m Electric Self Propelled Scissor Lift Aerial Working Platform

Standard features:

Battery power: long battery life and maintain free
Faster & Intelligent charger
Non-ark solid tires and smooth operation, friendly to sensitive floors
Environmental friendly with 0 emission and 0 leak
Extension platform, expand working range
Cost effective compared with boom lifts
Maintain supporting bar guarantee safety when maintenance
Emergency stop
Manual lower down device
Dual control on platform or ground
25% grade ability
Quick fold railings
Overload sensing
Slope protection

Description:

Self propelled Scissor Lift is mainly used to lift workers to high place for repairs, maintenance, cleaning, installation and so on. People could drive the lift easily to the right working area.Moving forward, turning around and lifting up are easily operated.Short chargeable time and long dural time of the battery.Easily moved, smooth working condition and high working efficiency.

Specifications:

Model	DZZ06SP	DZZ08NP	DZZ06	DZZ08	DZZ10	DZZ12	DZZ14
Rated Load Capacity	230Kg	230Kg	450Kg	450Kg	320Kg	320Kg	230Kg
Extension Platform Capacity	113Kg	113Kg	113Kg	113Kg	113Kg	113Kg	113Kg
Maximum Workers Numver	2	2	2	2	2	2	2
Working Height	7.8m	10m	8m	10m	12m	13.8m	15.7m
Platform Height	5.8m	8m	6m	8m	10m	11.8m	13.7m
Overall Length	1860mm	2480mm	2480mm	2480mm	2480mm	2480mm	2850mm
Overall Width	768mm	820mm	1190mm	1190mm	1190mm	1190mm	1250mm
Overall Height (Rails up)	2180mm	2320mm	2200mm	2320mm	2450mm	2570mm	2635mm
Overall Height (Rails down)	1840mm	1990mm	1660mm	1780mm	1910mm	2030mm	2100mm
Platform Size (LxW)	1670x740mm	2270x810mm	2270x1120mm	2270x1120mm	2270x1120mm	2270x1120mm	2640x1120mm
Platform Extension Size	900mm	900mm	900mm	900mm	900mm	900mm	900mm
Ground Clearance (Stowed)	83mm	100mm	100mm	100mm	100mm	100mm	100mm
Ground Clearance (Raised)	16mm	19mm	19mm	19mm	19mm	19mm	19mm
Wheel Base	1085mm	1895mm	1895mm	1895mm	1895mm	1895mm	2230mm
Turming Radius (Inside)	0m	0m	0m	0m	0m	0m	0m
Turming Radius (Outside)	1.64m	2.2m	2.2m	2.2m	2.2m	2.2m	2.7m
Lifting Motor	24V/3.3KW	24V/3.3KW	24V/3.3KW	24V/3.3KW	24V/3.3KW	24V/4.5KW	24V/4.5KW
Travel Speed (Stowed)	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h
Travel Speed (Raised)	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h
UP/Down Speed	20/20sec	30/25sec	24/34sec	36/35sec	60/40sec	60/50sec	82/60sec
Battery	4x6V/225Ah	4x6V/225Ah	4x6V/225Ah	4x6V/240Ah	4x6V/240Ah	4x12V/300Ah	4x12V/300Ah
Charger	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A
Gradeability	25%	25%	25%	25%	25%	25%	25%
Max.Working Slope	2°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Tyre	φ305x100mm	φ381x127mm	φ381x127mm	φ381x127mm	φ381x127mm	φ381x127mm	φ381x127mm
Overall Weight	1460Kg	2260Kg	2170Kg	2360Kg	2640Kg	2980Kg	3600Kg

Applications:

Self-propelled Scissor Lifts are mainly used for lifting people with tools working at height they need, for maintain or assemble, etc.Both indoor and outdoor are applicable for electric scissor lifts.

Indoor Outdoor Self Propelled Elevating Work Platforms Mobile Hydraulic Platform 12m 0

FAQ:

1. Can you customize product ?

Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.

2. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

3. What is your delivery & after-sales service?

The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.

4.How long will it take you to ship the goods?

It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.

5.What kinds of payment you accept?

We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
